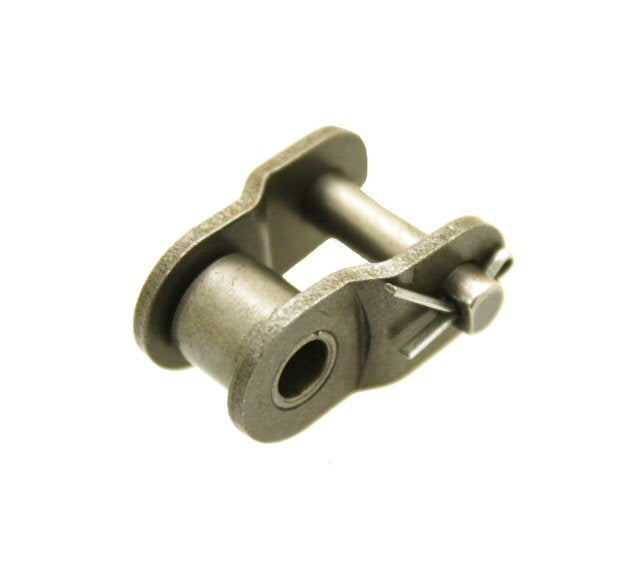

Universal Parts #428 Chain Offset Half Link
Original price
$2.00
-
Original price
$2.00
Original price
$2.00
$2.00
-
$2.00
Current price
$2.00
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Fine-tune your chain length with the Universal Parts #428 Offset Half Link. Also called a half link, this component lets you adjust chain length by a single pitch instead of the standard two — the perfect solution when your chain adjusters are maxed out or your drive base is fixed. Built from treated high-tensile steel with an ultimate tensile strength of 18.0 kN (4,091 lbs), it's a reliable fit for dirt bikes, ATVs, go-karts, mini-bikes, and pocket bikes running a #428 pitch chain. Pitch: 12.70mm Roller diameter: 8.51mm Pin diameter: 4.45mm Width between inner plates: 7.75mm Pin length: 16.70mm (L) / 18.2mm (Lc) Inner plate depth: 11.80mm Plate thickness: 1.60mm Ultimate tensile strength: 18.0 kN / 4,091 lbs Average tensile strength: 20.1 kN Weight per meter: 0.70 kg/m Compatible Applications: Dirt bikes & pit bikes — 110cc, 125cc, 150cc (Chinese and Japanese models) ATVs & quads using #428 final drive Go-karts — Trailmaster, Hammerhead, and custom predator-engine builds Mini-motos, pocket bikes, and small-bore street-legal bikes Installation note: Always seat the cotter pin or clip fully and orient it facing away from the direction of travel. California Prop 65 Warning: www.p65warnings.ca.gov
