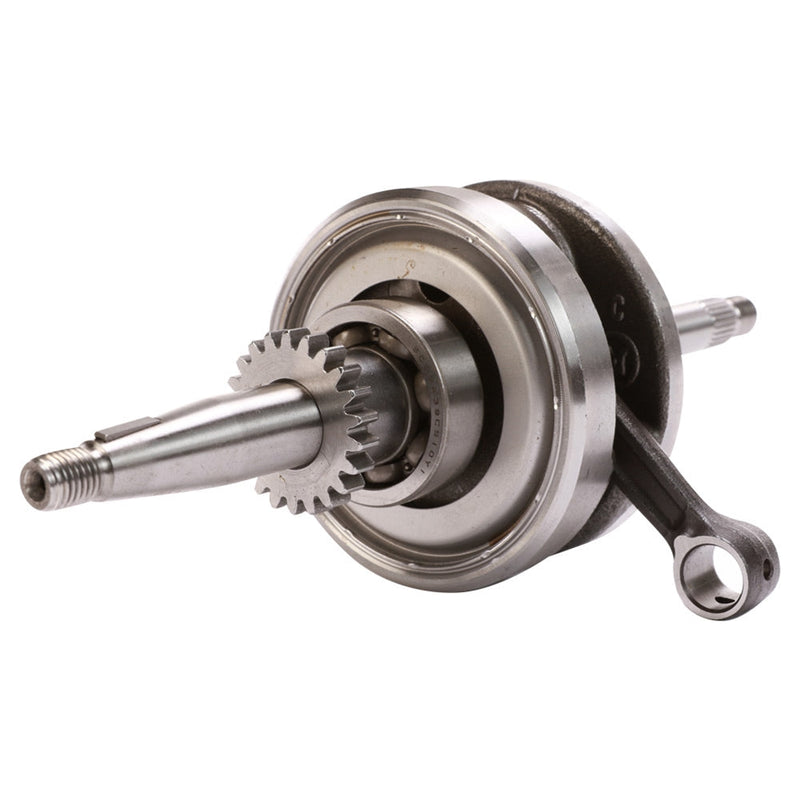

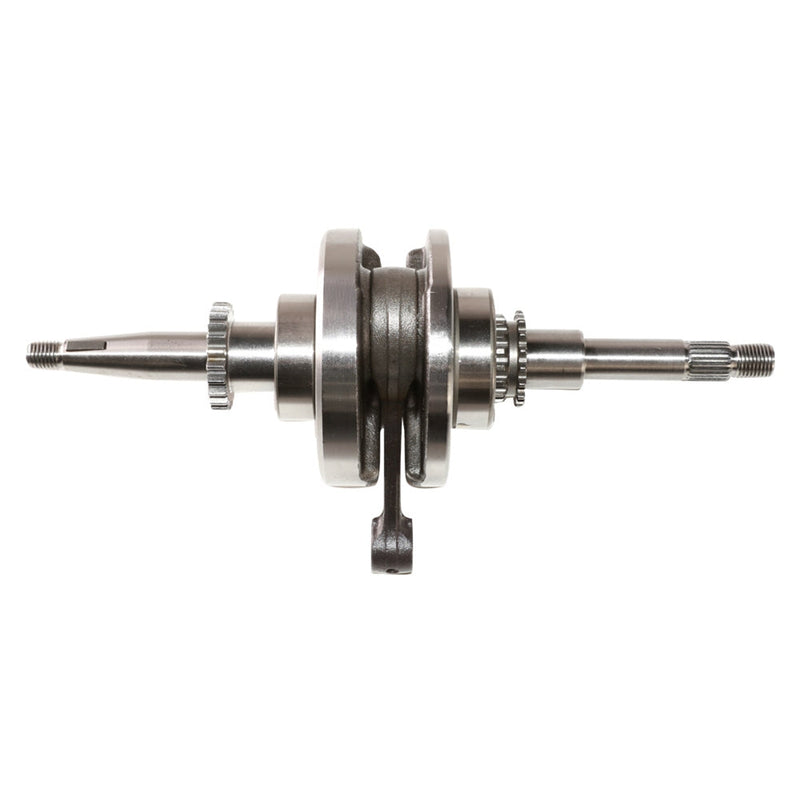

Complete Crankshaft (22 Tooth, Type 2); 139QMB Scooters
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This OEM complete crankshaft (22-tooth, type 2) replaces stock equipment on CSC go, go MAX, and Pug scooters and bikes running 139QMB (50cc 4-stroke) engines with a 22-tooth oil pump drive. The main bearings are installed.
Original Parts For Scooters SKU 151-238
Specifications:
- Stroke: 41.4mm
- Overall Length: 254mm
- Thread Size (tapered side): M10x1.25
- Thread Size (spline side): M12x1.25
- Bearing Outer Diameter (tapered side): 42mm
- Bearing Outer Diameter (spline side): 47mm
- Number of Splines: 26
- Number of Teeth (oil pump drive gear): 22
Compatibility:
| Chicago Scooter Company go | Chicago Scooter Company go MAX |
| Chicago Scooter Company Pug50 |
139QMB-based 50cc / 80cc engines with the following engine codes:
| 139QMA | 139QMB | 1P39QMB | 1P39QMA-2 |
| YN139QMB | JJ1P39QMB | 139FMA-2 | BD1P39QMB |
| BN139QMB | 147QMD | Other QMA models | Other QMB models |
Don't see your engine listed? If the engine code includes "QM" or "FM", this product is compatible with your vehicle.
