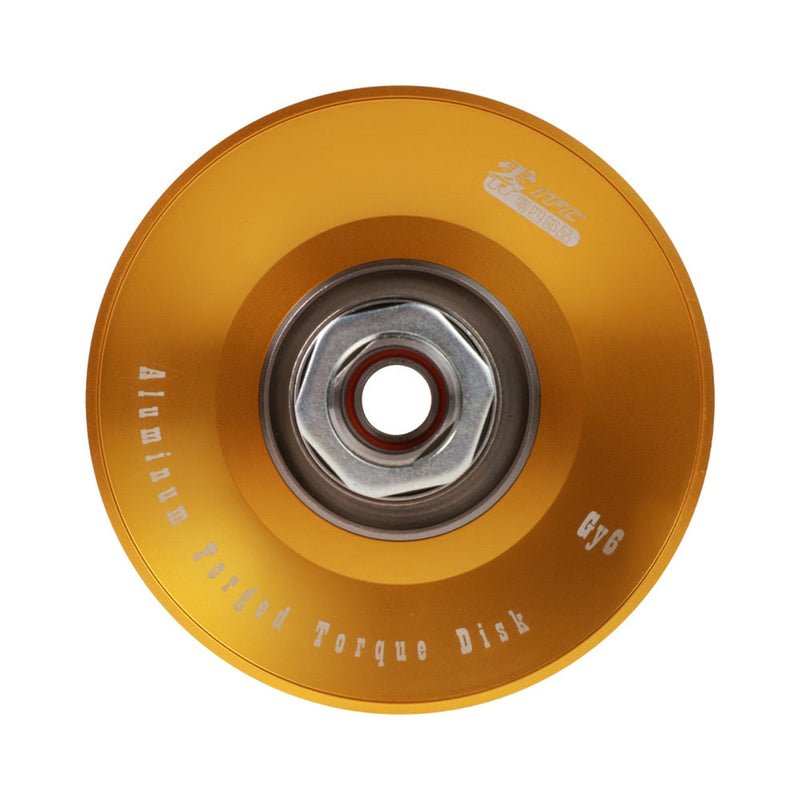

TFC Forged Aluminum Sheave Assembly - GY6 150cc-232cc
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Elite CVT Performance: TFC Forged Aluminum Sheave
Upgrade your drivetrain with the ultimate in precision engineering. The Taiwan Factory Champion (TFC) Forged Aluminum Sheave is designed specifically for high-displacement GY6 150cc to 232cc builds where weight reduction and heat dissipation are critical. By replacing heavy stock cast-iron pulleys with CNC-machined forged aluminum, you significantly reduce rotational mass, resulting in snappier throttle response and higher peak RPMs.
Technical Performance Features
- Rapid Acceleration: The lightweight forged construction allows your engine to reach its power band faster by reducing the parasitic drag on the drivetrain.
- Dual-Slot Tuning: Features user-selectable guide slots (Linear vs. Curved), allowing you to choose between a hard-hitting race launch or a smoother, linear top-speed transition.
- Superior Thermal Management: Aluminum dissipates heat far more efficiently than steel, protecting your drive belt from glazed edges and premature failure during high-speed runs.
- Premium Gold Finish: Features a high-quality gold anodized coating for superior corrosion resistance and a "show-ready" aesthetic.
Comprehensive Fitment Guide
This assembly is a direct-fit performance upgrade for 152QMI and 157QMJ based engines:
| Engine Codes | Compatible Models |
|---|---|
| GY6 150cc / 170cc | Wolf, Icebear, TaoTao, ZNEN, Bintelli, Kymco |
| GY6 232cc | Custom B-Block Oil-Cooled Performance Builds |
| Universal Fit | Any QMJ, QMK, or QMI engine using a 28mm shaft |
Technical Specifications
- Material: Forged Aluminum with a Gold Anodized finish
- Rear Pulley Plate: OD: 141.84mm / Shaft ID: 28mm / OD: 40-45mm / H: 77mm
- Secondary Slider Plate: OD: 141.84mm / Funnel ID: 34mm / OD: 43mm / H: 47mm
- Metal Secondary Spring Seat/Funnel: ID: 43.3mm / OD: 45mm / H: 37.20mm
- Included Hardware: Stainless Steel M28 Clutch Nut, 3 Steel Slider Pins/Guides, and pre-installed O-rings.
Mechanic's Note: Rotational mass is the "enemy" of a fast-revving GY6. Tuning Tip: Use the Linear slots for drag racing and immediate take-off, or the Curved slots for a more consistent cruising RPM on the street. Installation Tip: This kit includes a high-grade Stainless Steel M28 Nut. Ensure you use a Clutch Holding Tool to torque it correctly to prevent CVT damage!
SKU: 1200-1239
Vendor: TFC (Taiwan Factory Champion)
Original Parts For Scooters SKU 179-5
