Universal Parts GY6 125/150cc 8-Coil AC Stator Assembly
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Reliable Ignition: Universal Parts 8-Coil AC Stator

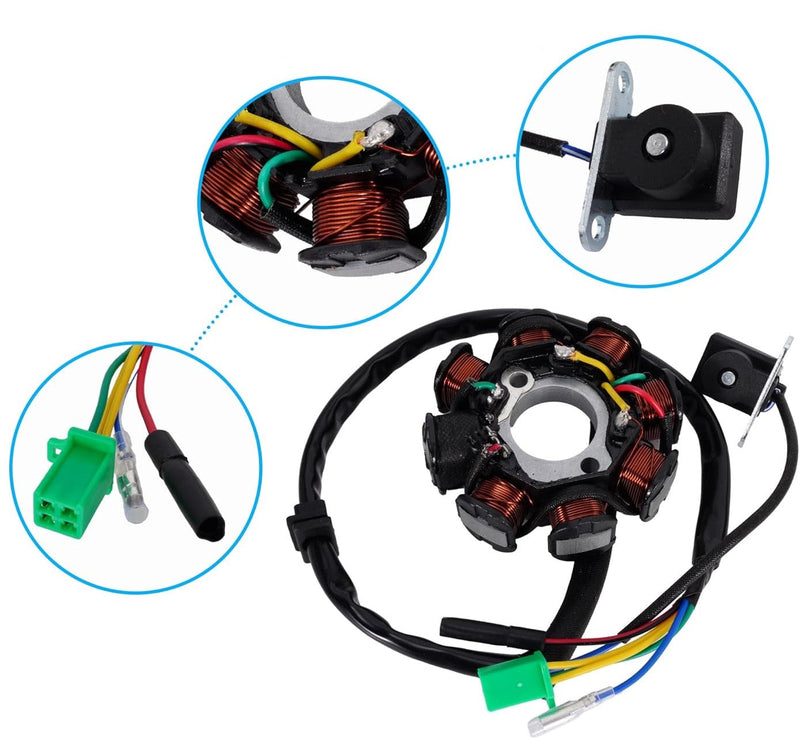

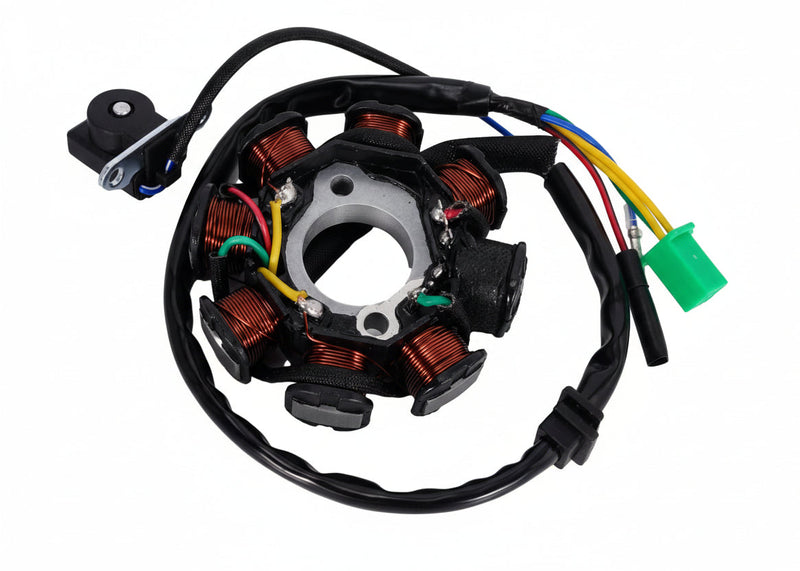

Restore your scooter’s charging and ignition system with the Universal Parts 8-Coil AC Stator. Designed for the ubiquitous GY6 125cc and 150cc 4-stroke engines (QMI152/157 & QMJ152/157), this stator is a high-quality replacement for air-cooled "long case" and "short case" engines. This specific unit is for AC-fired ignition systems, providing the essential electrical pulses to your CDI and consistent power to your lights and battery.
Technical Performance Features
- High-Output 8-Coil Design: Features eight precision-wound copper coils to provide superior heat dissipation and stable voltage output compared to standard 6-coil units.
- Full-Wave AC Performance: Engineered for AC-system scooters where the headlight brightness fluctuates with engine RPM, ensuring a factory-correct electrical load.
- Heavy-Duty Pickup Coil: Includes a pre-installed magnetic pulse generator (pickup coil) to deliver precise timing signals to the CDI for smooth idling and acceleration.
- Plug-and-Play Wiring: Equipped with a standard 4-pin female plug (3 pins utilized) and two separate bullet connectors for a straightforward installation.
Comprehensive Fitment Guide
This 88mm stator is a standard replacement for hundreds of GY6 125cc and 150cc Chinese and Taiwanese scooters, including:
| Engine Type | Common Compatible Brands |
|---|---|
| GY6 125cc (152QMI) | TaoTao, Wolf, Ice Bear, Bintelli, Vitacci, Peace Sports |
| GY6 150cc (157QMJ) | Jonway, Roketa, Kazuma, SunL, Tank, TNG, Vento |
| Genuine Scooters | Buddy 125, Buddy 150, Hooligan 170i (Verify AC/DC) |
Technical Specifications
- Stator Diameter: 88mm
- Width: 30mm
- Mounting Bolt Spacing: 41mm (Center-to-Center)
-
Bolt Hole Diameter: 6mm
- Wire Length: 534mm (21 inches)
-
Ignition Type: AC (Alternating Current)
- Plug Style: 4-pin (3 pins used), female, and two single-pin connectors
Mechanic's Note: Before ordering, you **MUST** verify if your scooter is AC or DC fired. A quick way to check: if your headlights turn on only when the engine is running, you likely have an **AC system**. If they turn on with just the key in the "On" position, you have a DC system. **Note:** Electrical items are non-returnable; please double-check your plug style and coil count against your original part.
SKU: 164-102
Manufacturer: Universal Parts
